CONTINUOUS, AUTOMATIC
BLOOD PRESSURE MONITOR
USM-700GV-B
: with battery & RS-232C (without printer)
USM-700GV-P
: with printer & RS-232C (without battery)

 |
Compact
and portable |
Weights
only 2.5kg allowing portability and mobility.
|
Built-in
battery allowing for portability (USM-700GV-B only) |
The
compactness and built-in battery makes it suitable for monitoring blood
pressure in situations requiring high mobility, especially in ambulances,
transportation of patients.
|
Easy
to operate and user-friendly |
The
operation panel consists of soft-tough buttons which requires only one push of
the finger to operate. The display is made of drip-proof material which does
not require any care.
|
Blood
Pressure Monitoring Functions |
Select
from 12 measurement intervals: From OFF to 120 minutes during monitoring of
blood pressures. If a measured value should deviate from the upper or lower
limit of the pre-set systolic blood pressure limit. USM-700GV will alert user
through its blinking display and alarm.
|

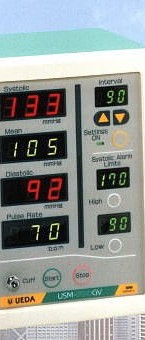

Large
Digital Display |
Systolic
and diastolic blood pressure are displayed in red while mean blood pressure
and pulse are in yellow.
|
Step
by Step Increment of Pressure |
Discomfort
from an over-pressured cuff can be prevented while allowing an accurate
measurement to be obtained a short time.
| SPECIFICATIONS
: |
|
|
| Measuring method |
: |
Oscillometric
method |
| Measuring range |
: |
10-285 mmHg |
|
|
30-200 b.p.m. |
| Set value of
systolic pressure monitoring |
: |
Upper limit :
140-240 mmHg |
|
|
Lower limit :
50-150 mmHg |
| Electrical shock
protection |
: |
Class I Type B |
| Built-in battery
(USM-700GV-B only) |
: |
Approx. 1.5 hrs
(Operating time) |
|
|
Approx. 2 hrs
(Fast charging time) |
| Communication
Feature |
: |
SIO (Conforming
to RS232C) |
| Weight |
: |
Approx. 2.5 kg |
| External Dimension |
: |
130(W)×175(H)×150(D)mm |
|
