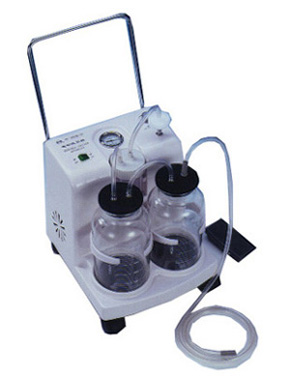

Electric Suction Apparatus Model YB·DX23D-1A
Electric Suction Apparatus model YB·DX23D-1A,a high vacuum, high flow medical suction unit
with a trolley-style absorbs varied mucus rapidly from body cavity or wound to satisfy most demands in operation rooms, wards and so on.
Features
- A oil-impregnated vanes pump, Large-bore bottle, transparent hoses
and unique connections, unit case made of engineering plastics, external appearance novel, structure reasonable.
- Two-stage overflow protection devices prevent liquid entering pump
effectively; Air filter equipped reduces bacterium in absorbed liquid to environmental pollution.
- compact, light weight, put-and-pull smoothly, convenient to move.
 Specifications
- Max. Vacuum:=0.09MPa(680mmHg)
- Flow rate:=20L/min
- Storage bottles:2500ml×2
- Vacuum Adjustable Range:0.02Mpa~Max. vacuum
- Noise:=60dB(A)
- Power supply:~220V±10%,50Hz
- Input:280VA
- Dimemsion:410mm×340mm×540mm
- Net:17kg
Accessories
- Celiac catheter 1PC
- Suction hose 1PC
- Fuse 3pcs
- Air filter 2pcs
|
|
