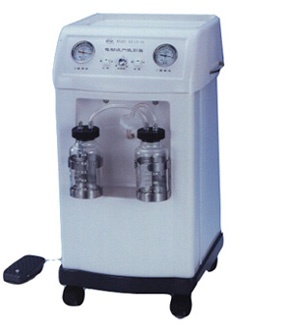

Electric Abortion Suction Unit model YB-LX-1A

Electric Abortion Suction Unit model YB-LX-1A,intended for early artificial interruption of pregnancy and removal of the residua after postpartum, is a mobile suction apparatus with a novel style. It also applies to other fields for suction.

Feature

1. A oil-impregnated vanes pump with high efficacy and well-worn performance acts as vacuum source, two-stage vacuum systems, and double vacuum meter equipped for supervising the vacuum level of two-stage vacuum systems.
2. Safety device can prevent positive pressure from producing and entering working system, The air filter can reduce contamination to the environment.
3. The unit case made of engineering plastics, external appearance novel, structure reasonable. Operating tray can be placed on top of the unit case that provides facility.

Specifications

1. Max. vacuum:=0.09MPa(680mmHg I-Stage)
2. Flow rate:=15L/min
3. Vacuum bottle:2500mL×2
4. Storage bottle:500mL×2
5. Power supply:~220V±10%,50Hz
6. Input power:280VA
7. Net:27kg
8. Dim (L×W×H):440mm×425mm×740mm

Accessories

1. Abortion catheter(6#,7#,8#) 1set
2. Liquid filter 1pc
3. Suction hose 1pc
4. Fuse    4pcs
5. Mechanical oil (N15)    1pot
6. Air filter 2pcs
