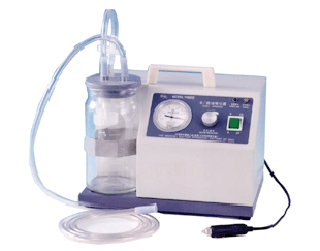

Model JX820Z Emergency Aspirator (AC/DC)

Model JX820Z AC/DC Aspirator is a novel, portable, AC/DC powered medical suction unit, It is suitable for giving emergency treatment to a respiratory tract patient in hospital, first-aid teams, or social medical services, It is able to clean secretion, blood, vomitus by which the tract blocked so that breathe unobstructed, especially available for patient first-aid and health care in patient transport and a place without AC/DC.

Feature

1. Maintenance free oil-less pump, high flow rate, without pollution by oil mist.
2. Powered by three kind of power supply AC, external DC, and internal battery, continuous movement time=1 hr when fully charged, rechargeable, attach the unit to the cigar lighter (DC 12V) by wire when use on the vehicles such as ambulance.
3. Charge method is constant voltage, limited current, and integral trickle type, Internal battery charged while the unit working by power supplies AC220V,or external DC 12V.There are battery indicators of full and insufficiency.
4. Large-bore bottle with stopper having sealing ring is convenient to open and clean.
5. Overflow protection prevents liquid entering pump.
6. Transparent non-toxic PVC hoses and unique connections are easy to observe and link.
7. Air filter equipped reduces bacterium in absored liquid to environmental pollution.
8. Stability, low noise, easy to carry, can use in wide range, safe and reliable to operate.

Specifications

1. Max Vacuum:=0.08MPa(600mmHg)
2. Free air flow:=20L/min
3. Liquid storage bottle:1000ml,1pc
4. Vacuum adjustable range:0.02~0.08MPa(150~ 600mmHg)
5. Noise level:=60dB(A)
6. Input:110VA
7. Power supply:AC220V±10%,50Hz;DC 12V
8. When fully loaded, internal battery average run time:=1hr
9. Working system: continuous operation with intermittent loading
10. Dimemsion:320mm×220mm×340mm
11. Net:10.5kg

Accessories

1. Phlegm Catheter(F8, F12) 1Set
2. Suction hose 1PC
3. Air filter        2PCs
4. Fuse 5PCs
5. Plug of Cigar lighter for Vehicle       1PC
